Product Description

Note: This is a DIY kit, you need to assemble it, no instruction supply.

Sepecification:

Input voltage: AC 12-17V (No direction)

Output voltage: DC 8-14V (adjustable)

Output current: 500mA

Board size: 4.9 * 3.5cmQuantity: 5pcs

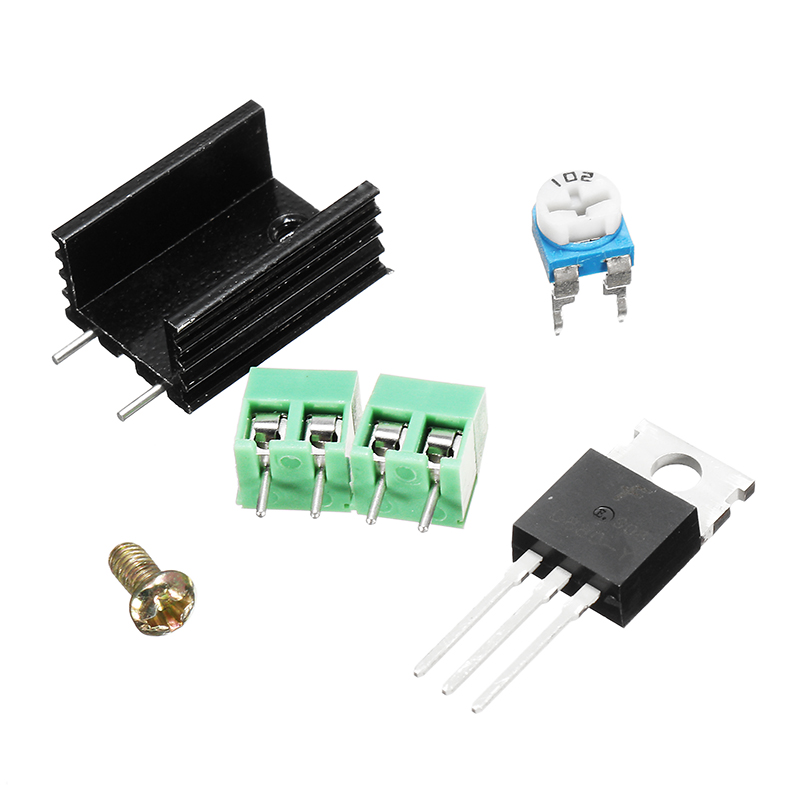

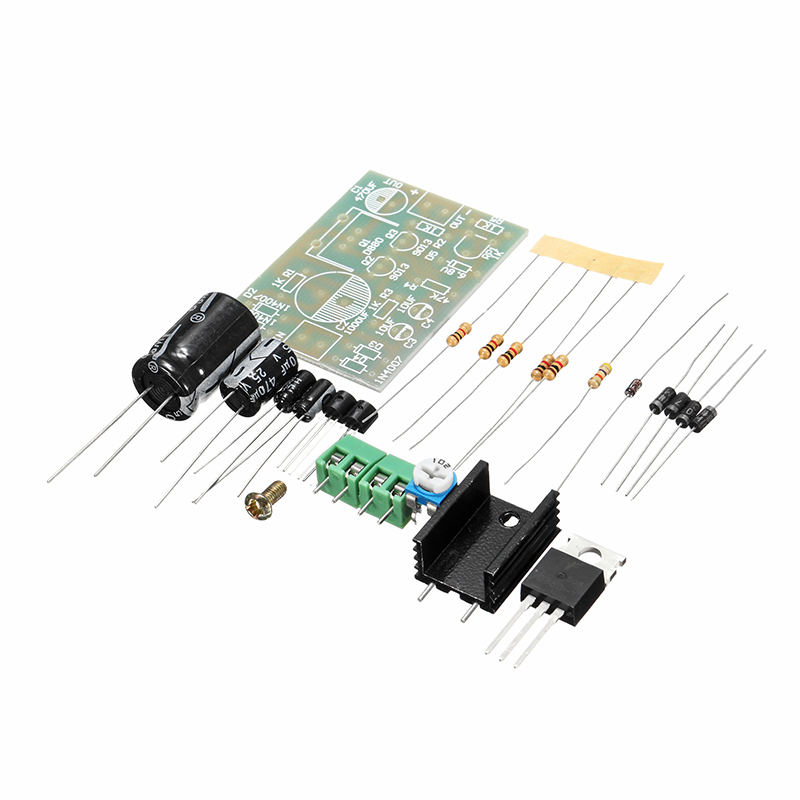

Package includes:

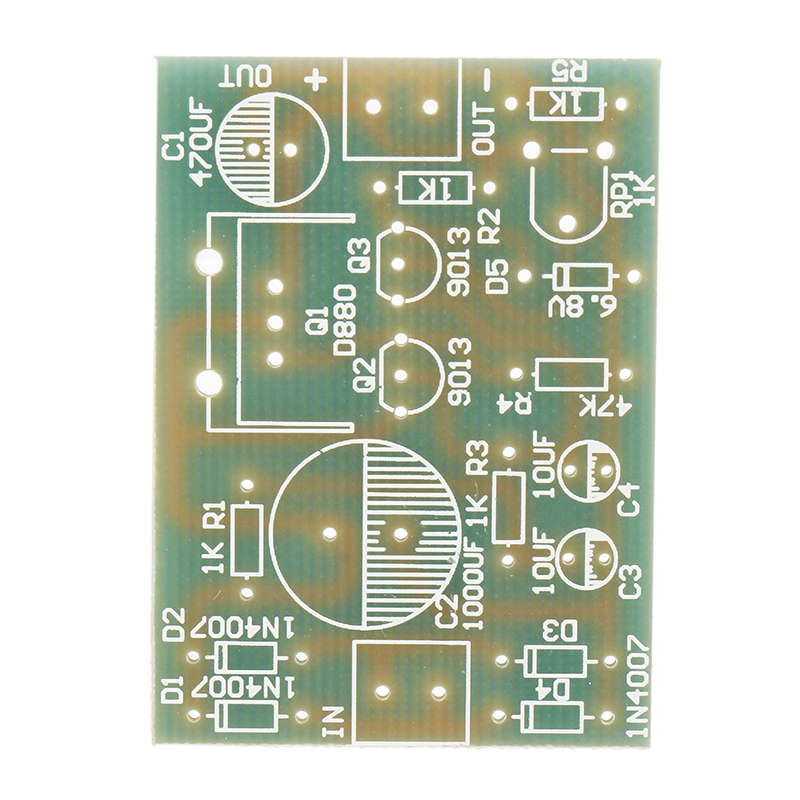

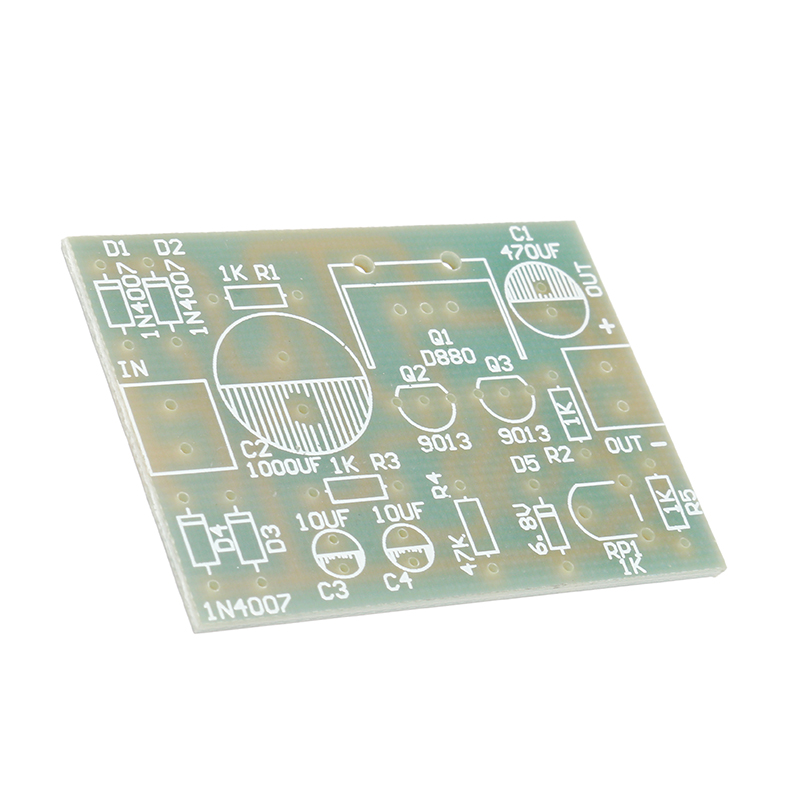

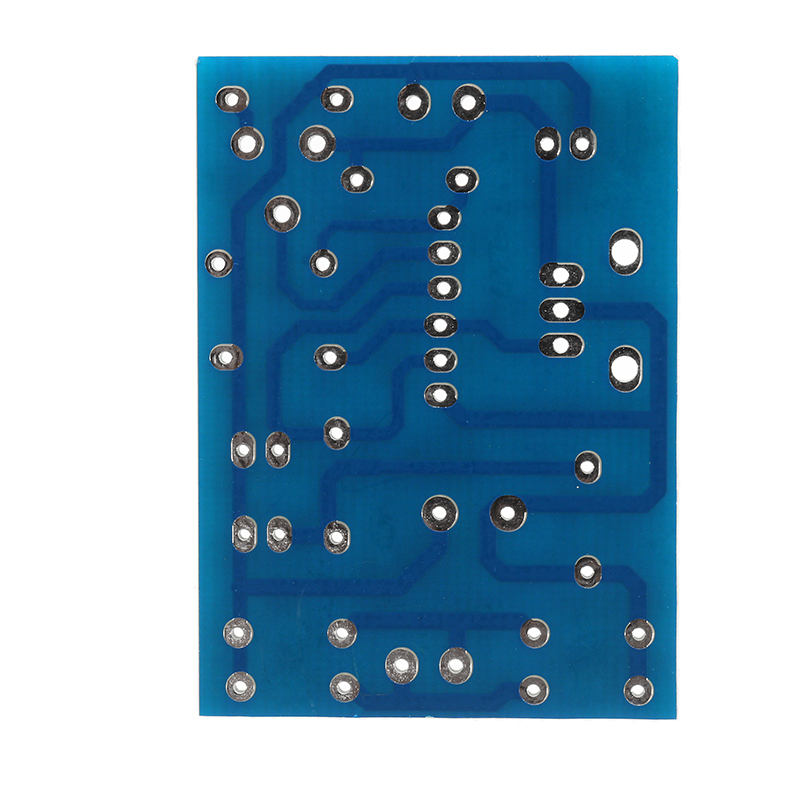

1 x PCB board

2 x 9013 transistor

1 x D880 transistor

1 x 15 * 10 * 20mm heatsink

1 x M3 * 6 screws

2 x 3.96-2P pillars

4 x 1N4007 diode

1 x 0.5W 6.8V Zener diode

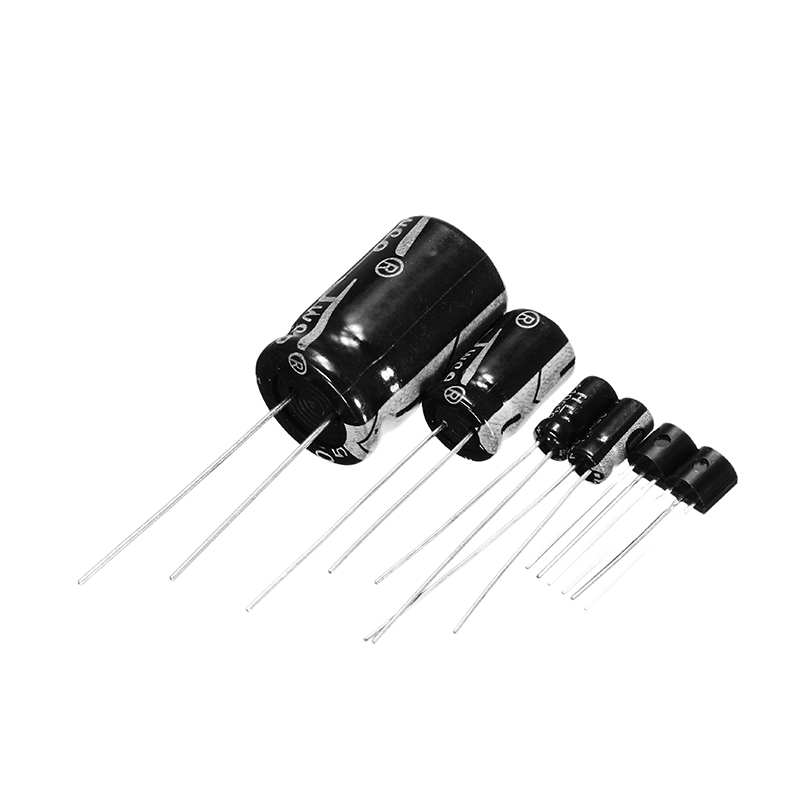

1 x 1000UF50V electrolytic capacitor

1 x 470UF25V electrolytic capacitor

2 x 10UF25V electrolytic capacitor

5 x 1K resistor

1 x 47K resistor

1 x 1K blue and white potentiometer

Test, for reference only:
