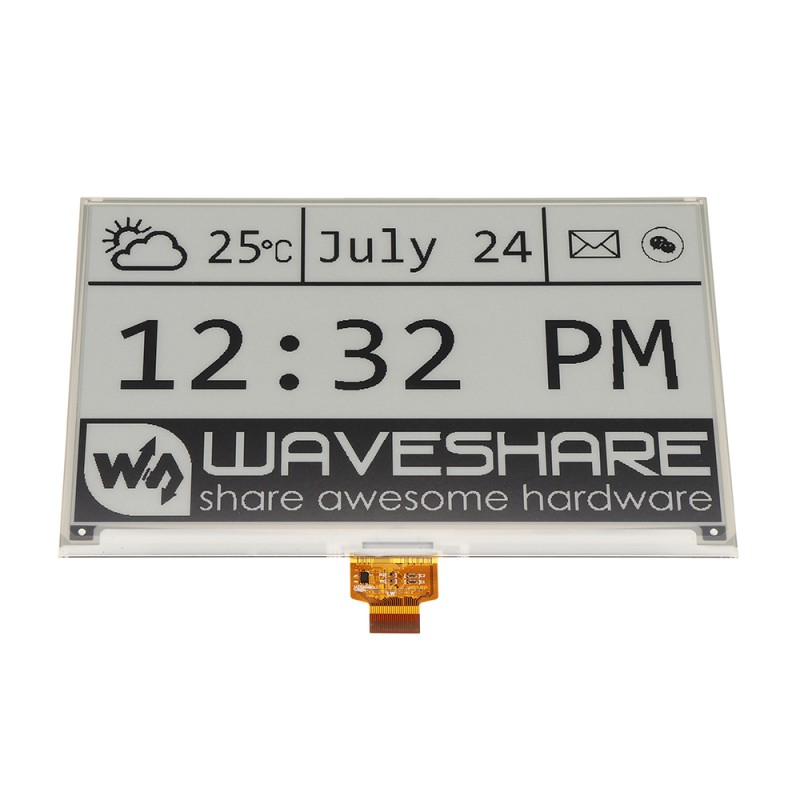

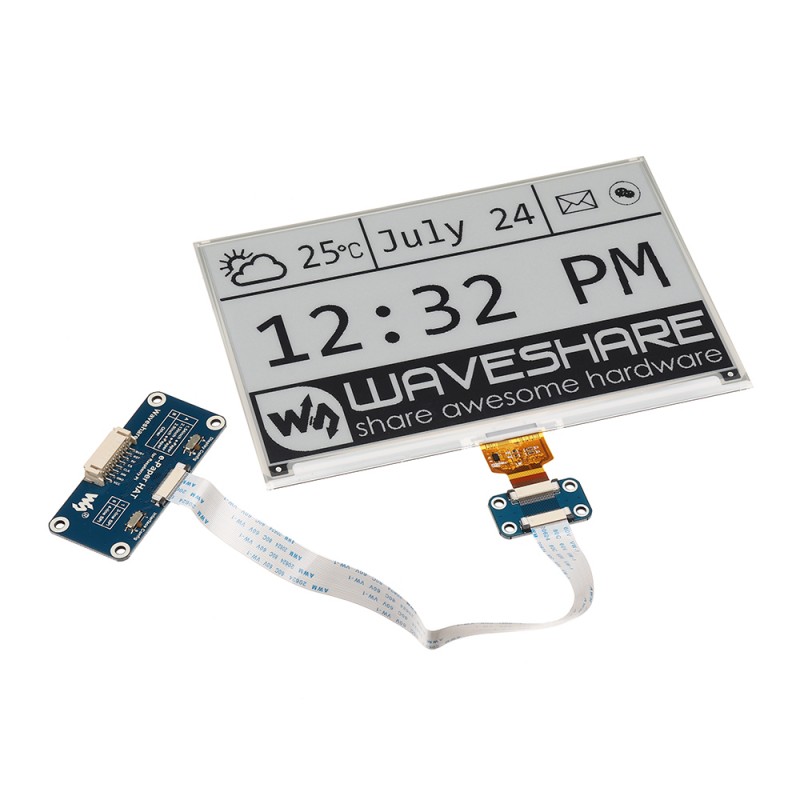

Waveshare 7.5 Inch E-ink Screen Module e-Paper Display SPI Interface Raspberry Pi
Product Code: trd048
Availability: In Stock
Availability: In Stock
$90.87
Ex Tax: $90.87
Ex Tax: $90.87
Product Description
Features:
No backlight required, power off can keep the last screen display for a long time
Very low power consumption, basically only consumes power when refreshingBased on Raspberry Pi standard interface design, compatible and can be directly inserted into Raspberry Pi 2 generation B/3 generation B/Zero/Zero W
SPI control interface, can access Raspberry / Arduino / Nucleo and other main control boards
Provide a complete supporting information manual (sample programs such as Raspberry/Arduino/STM32)
Parameter:
Working voltage: 3.3V
Communication interface: SPI
Dimensions: 170.2mm x 111.2mm
Display size: 163.2mm x 97.92mm
Point distance: 0.255 x 0.255
Resolution: 640 x 384
Display color: black, white
Gray level: 2
Global refresh: 6s
Refresh power consumption: 38mW (typ.)
Standby power consumption: <0.017mW
Viewing angle: >170°
Interface Description:
VCC: 3.3V
GND: GND
DIN: SPI communication MOSI pin
CLK: SPI communication SCK pin
CS: SPI chip select pin (Active Low)
DC: Data/command control pin (high level means data, low level means command)
RST: External reset pin (low reset)
BUSY: Busy status output pin (low level means busy)

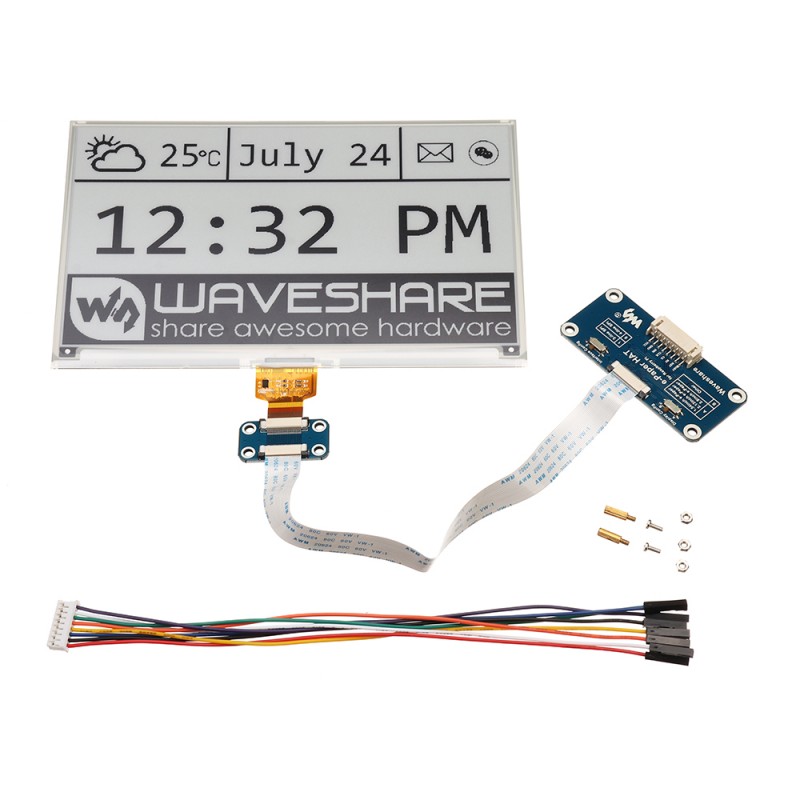

Package includes:

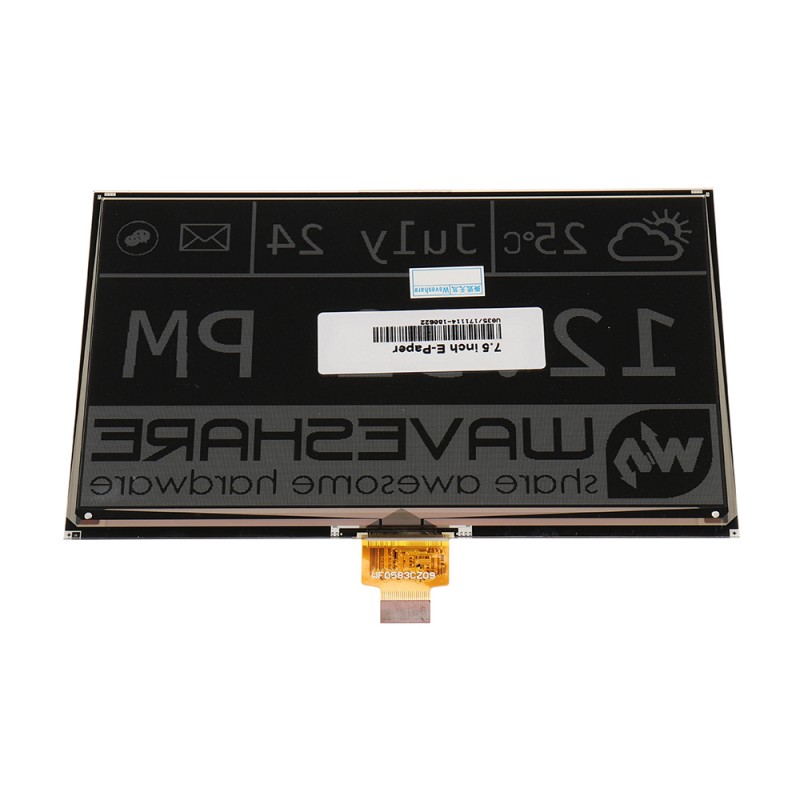

1 x 7.5inch e-Paper

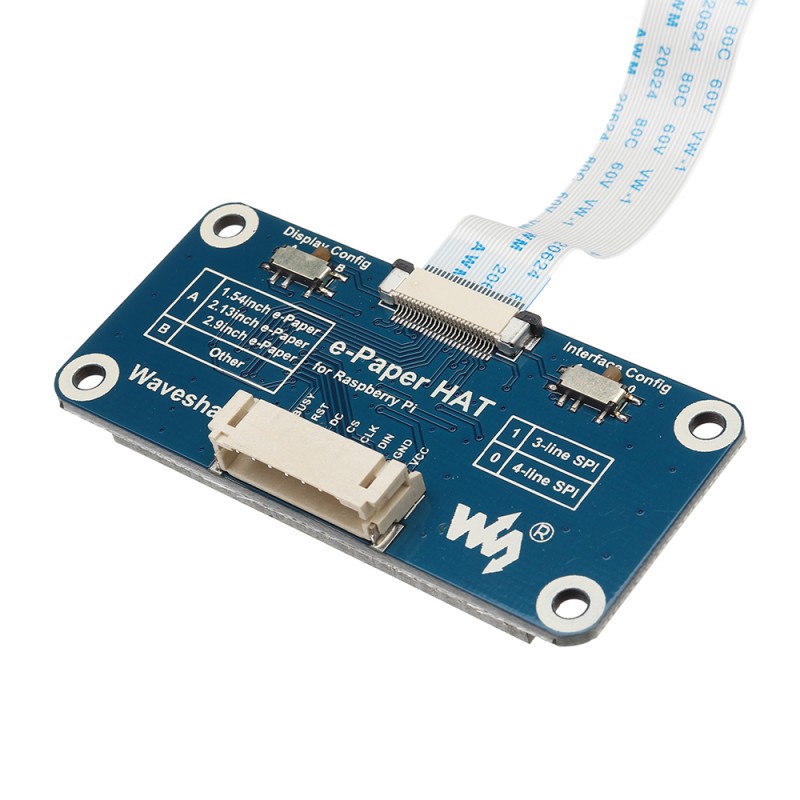

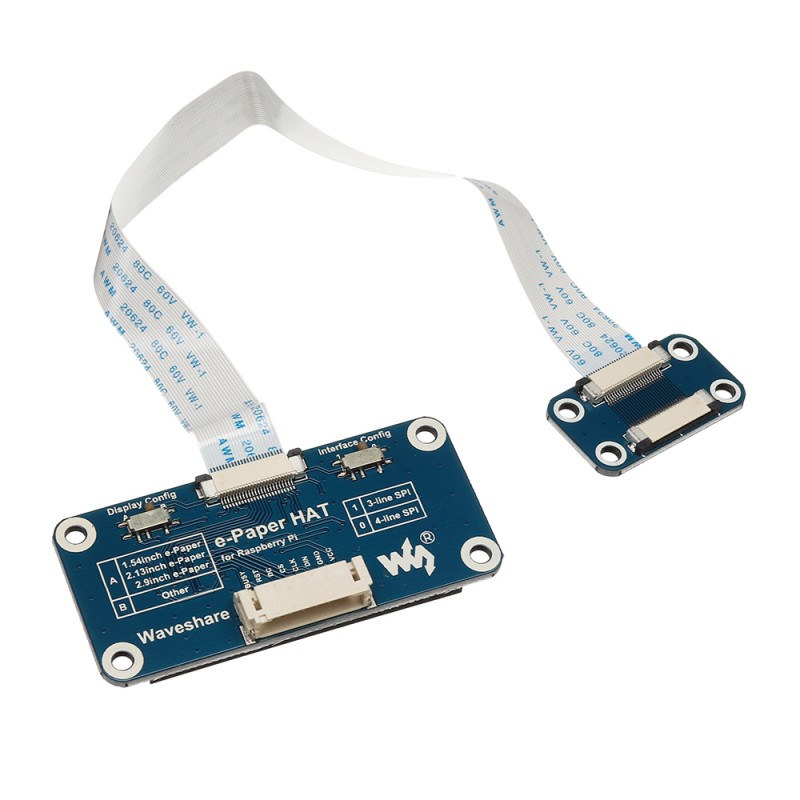

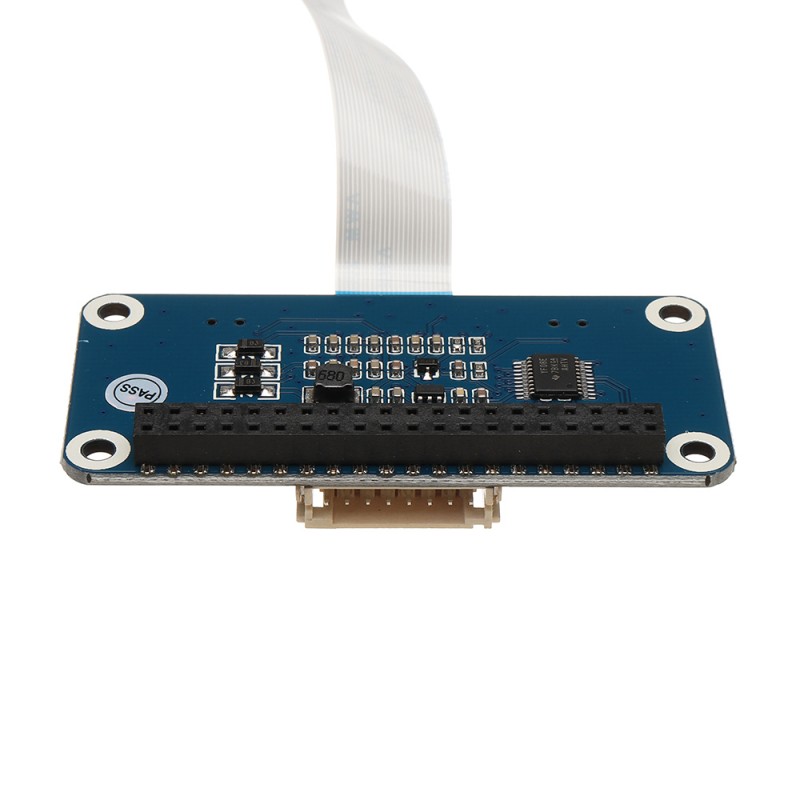

1 x e-Paper Driver HAT

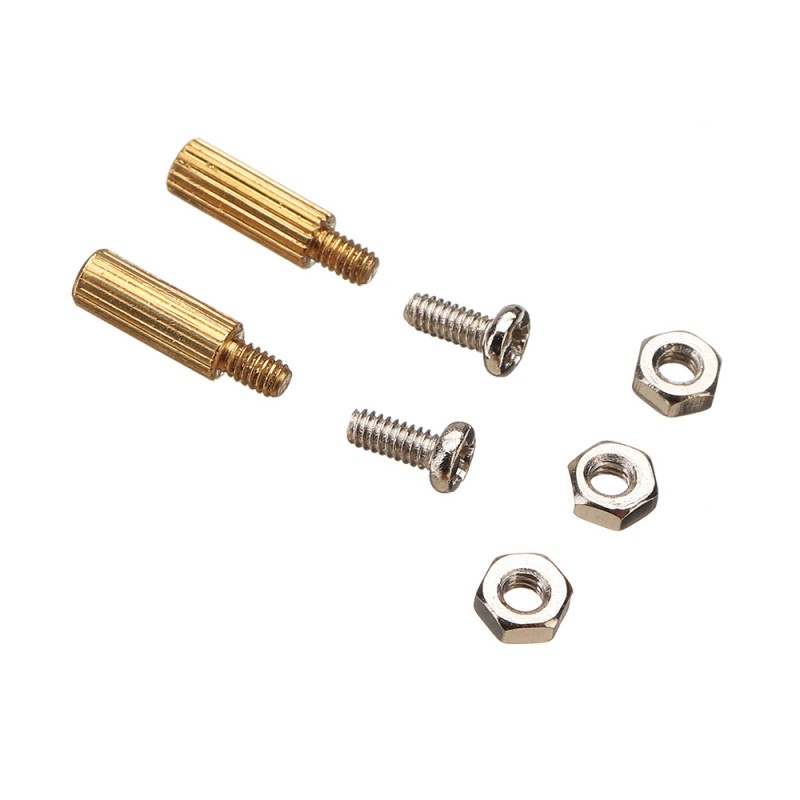

1 x RPi copper column package (2PCS set)
