REX-C100 110-240V Digital PID Temperature Controller Kit

Product Description

Description :

REX-C100 110-240V Digital PID Temperature Controller Kit

Features :

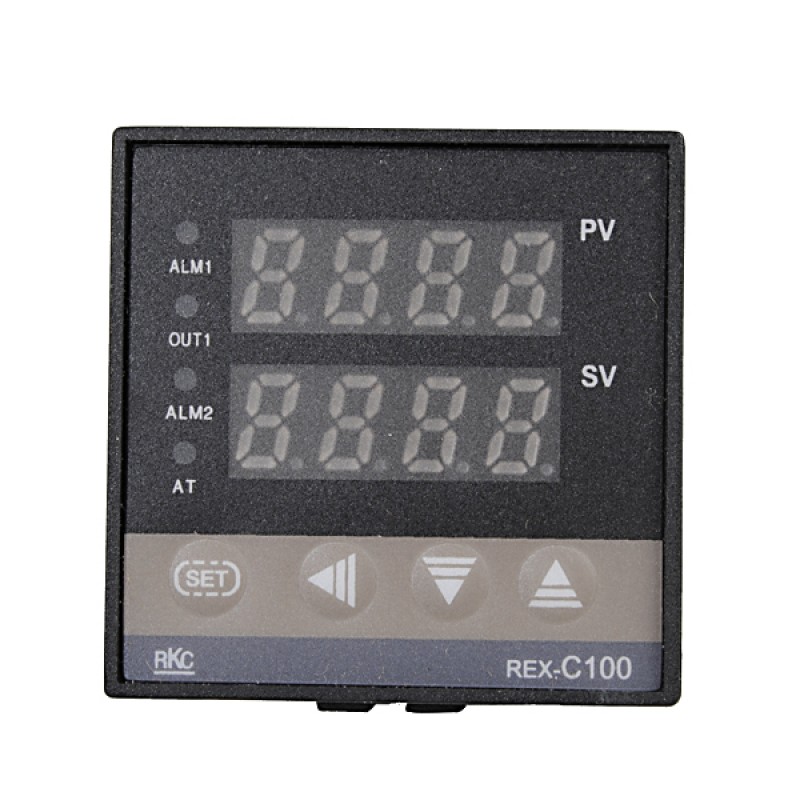

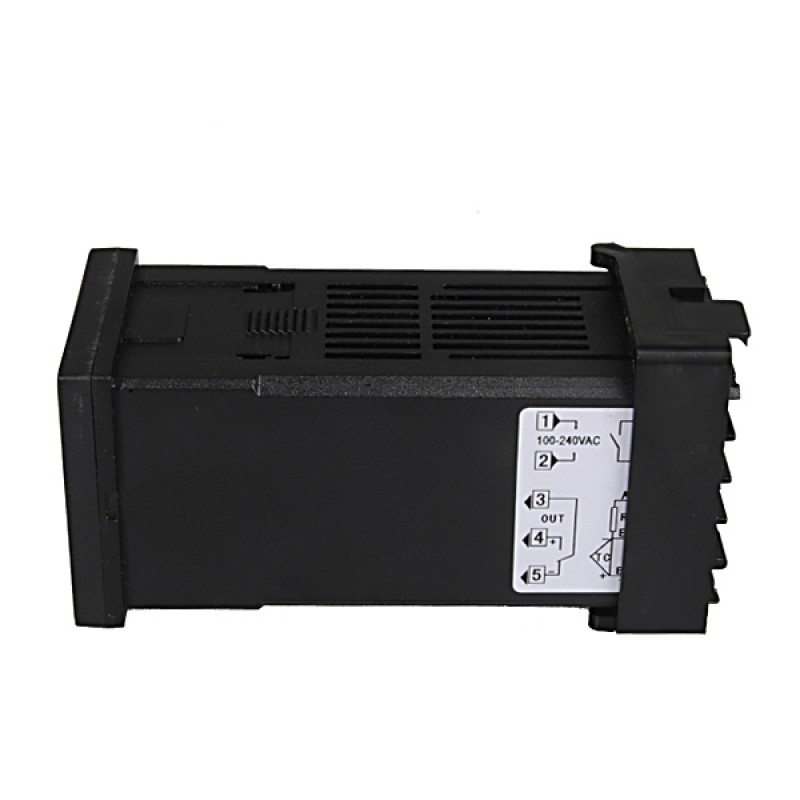

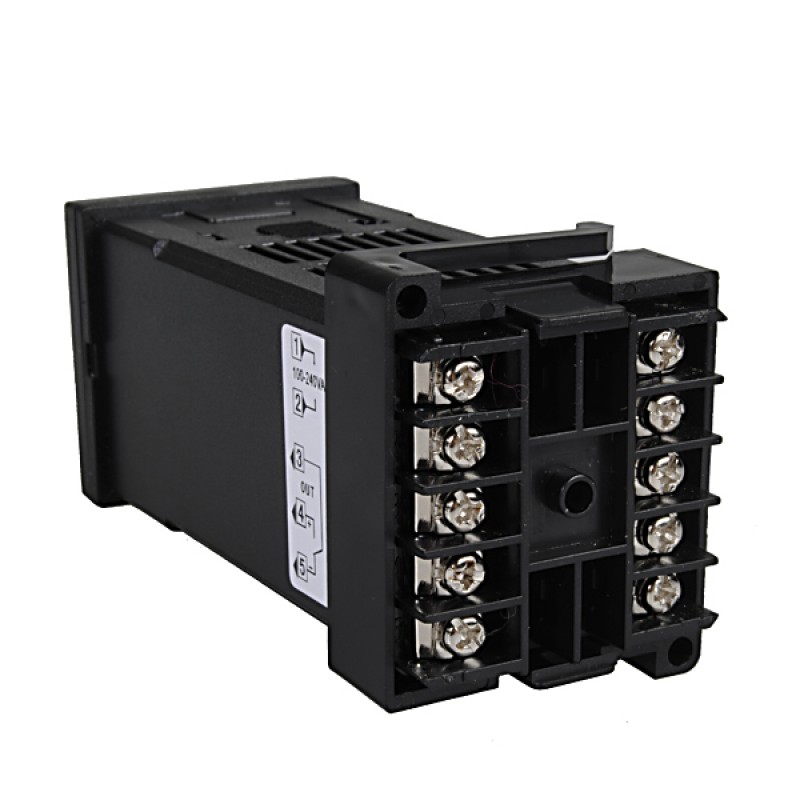

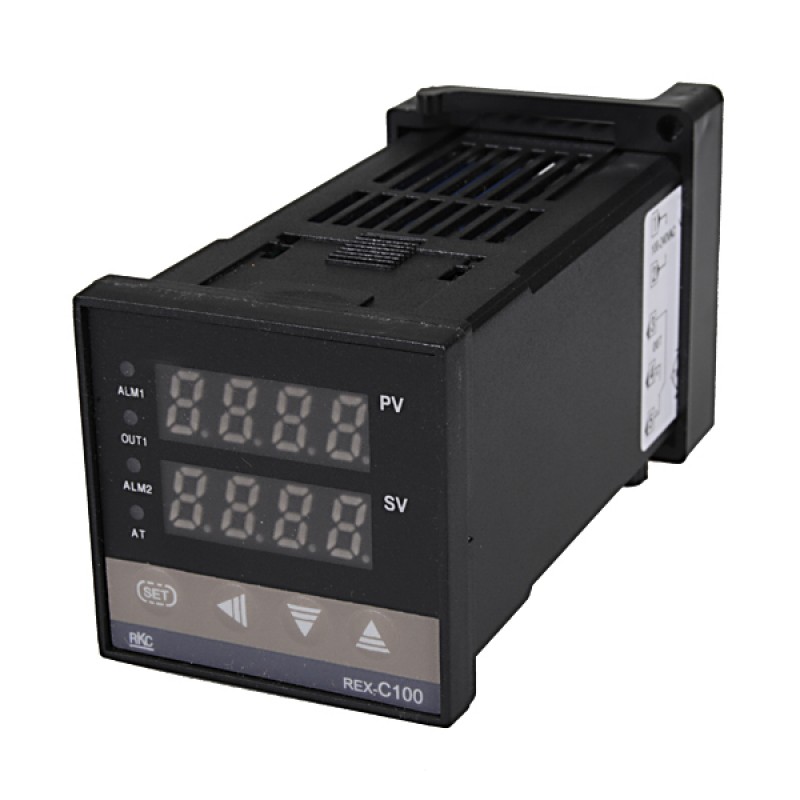

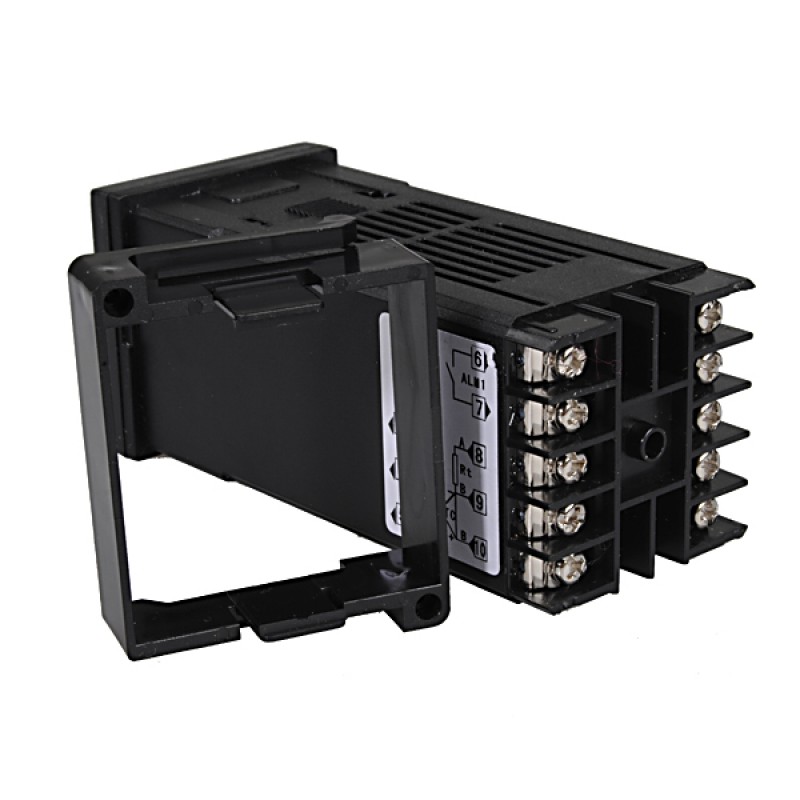

REX-C100 Temperature Controller

Measuring accuracy : ±0.5FSCold-end compensation tolerance : ±2 can be modified by software in 0~50Resolution : 14 bitSampling cycle : 0.5 SecPower : AC 110-240V 50/60HZProcess value (PV), Setting value (SV)Output, alarm and self-tuning can be indicated by : LEDPIN control (including ON/OFF, step-type PID and continuous PID)Self-tuning controlRelay output : contact capacity 250V AC 3A (resistive load)Alarm function output : 2 wayProportional band (P) : 0~full range (ON/OFF control when set to 0)Detective temperature range : 0 to 400Insulation resistance : >50M ohm(500V DC)Insulation resistance : 1500V AC/minInsulation resistance : Power Consumption < 10 VAService environment : 0~50Environment with no corrosive gas 30~85 RH

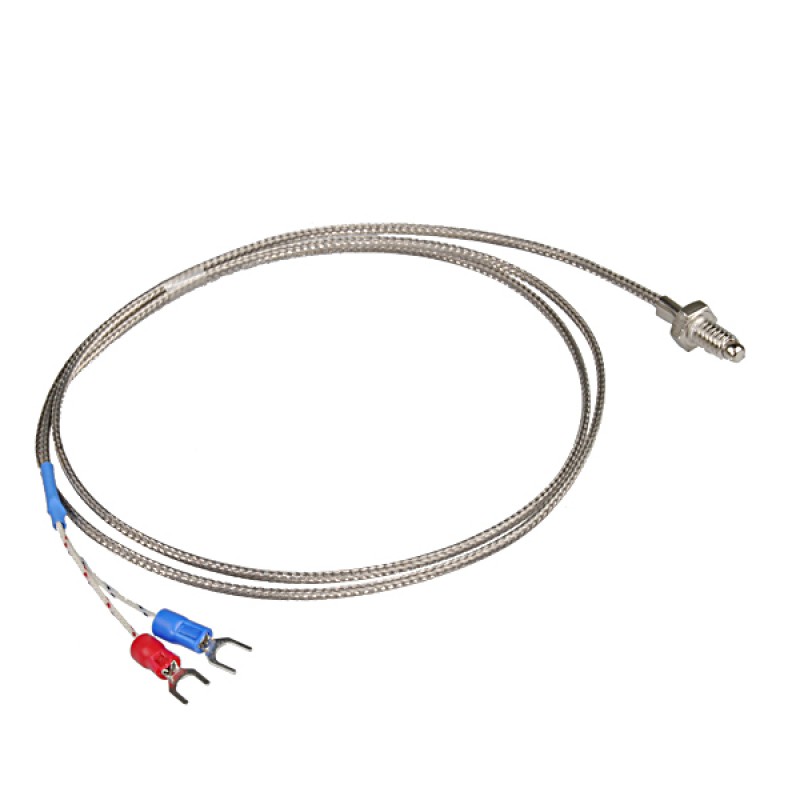

K Thermocouple Probe Cable

Length : 1MSensor diameter : 4.5mmTemperature rang : 0 to 400Internal Insulation : FiberglassExternal Shielding : Insulated Shielding

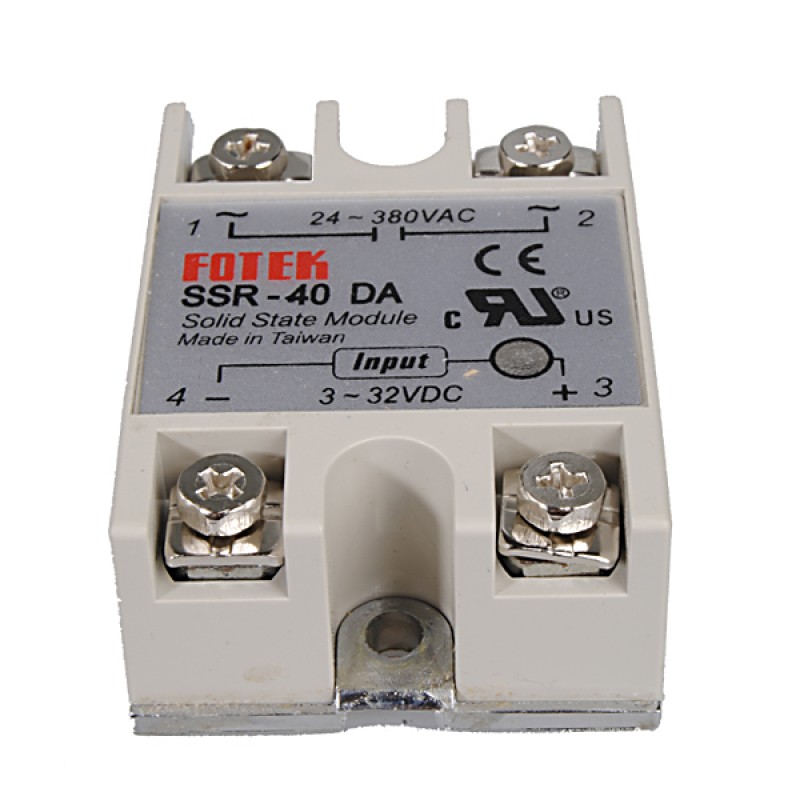

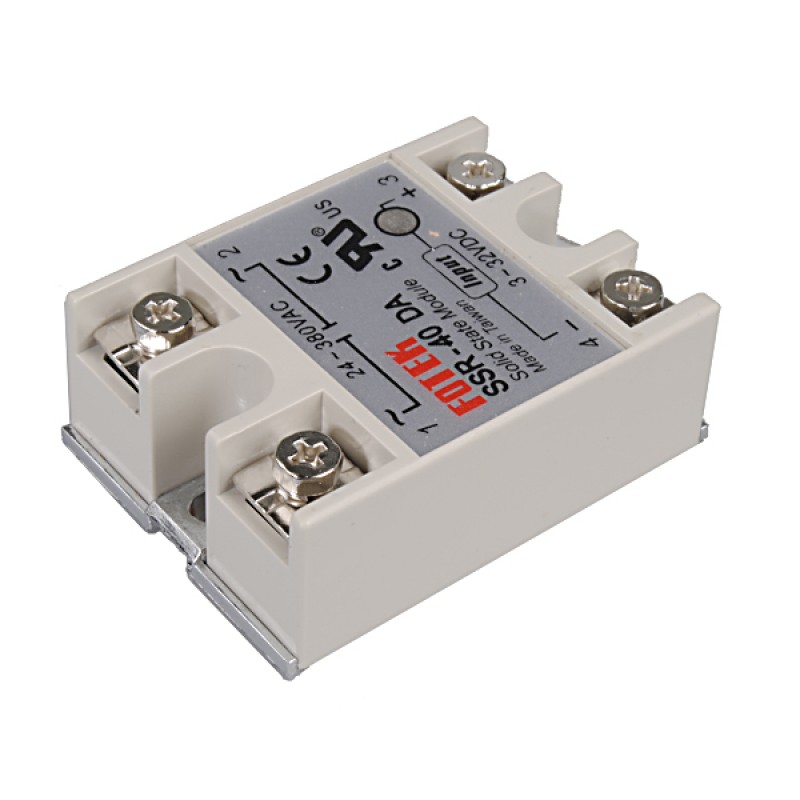

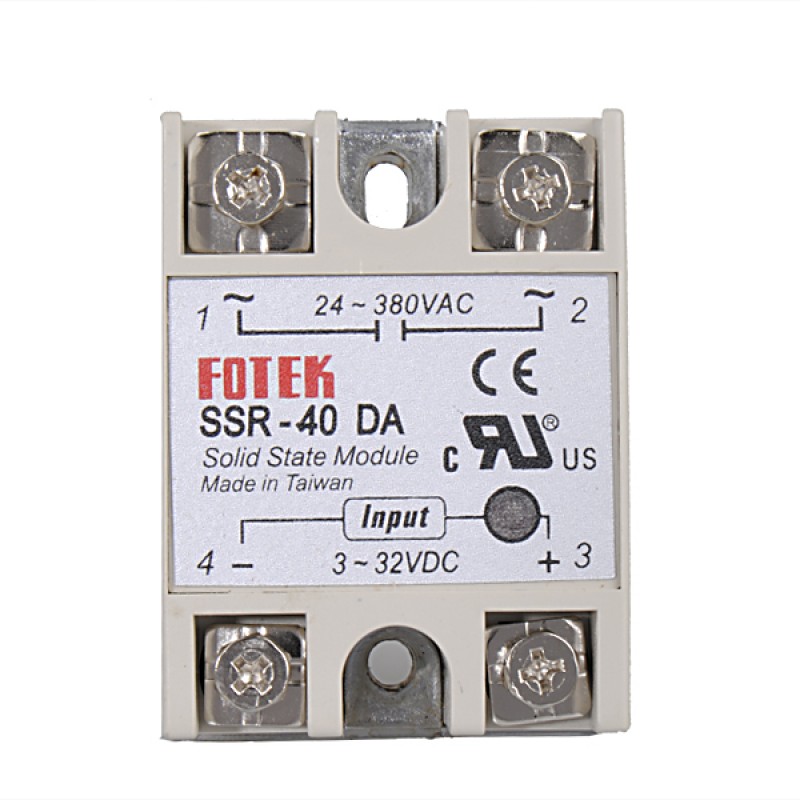

Max.40A SSR

Output Voltage Range : Standard TypeOutput Current : 40AInput Voltage : DC 3-32VOutput Voltage : 24-380V AC

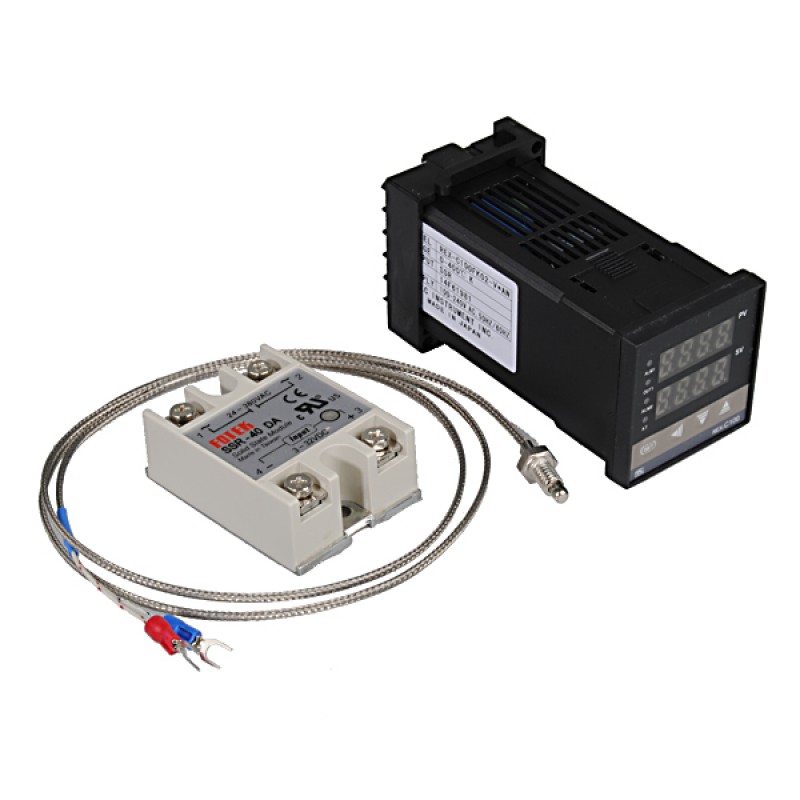

Package included :

1 x REX-C100 PID Temperature Controller1 x K Type Probe Sensor1 x Max.40A SSR

Warm Tips : Now we have created a that is 220V.

Can find more information about this PID Temperature Controller in the ENGLISH MANUAL
