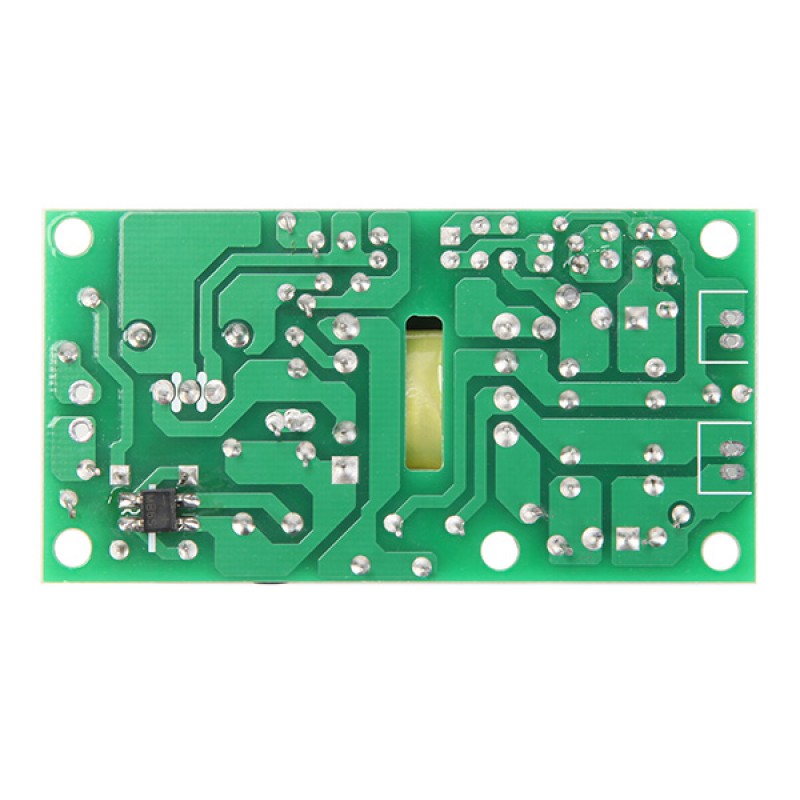

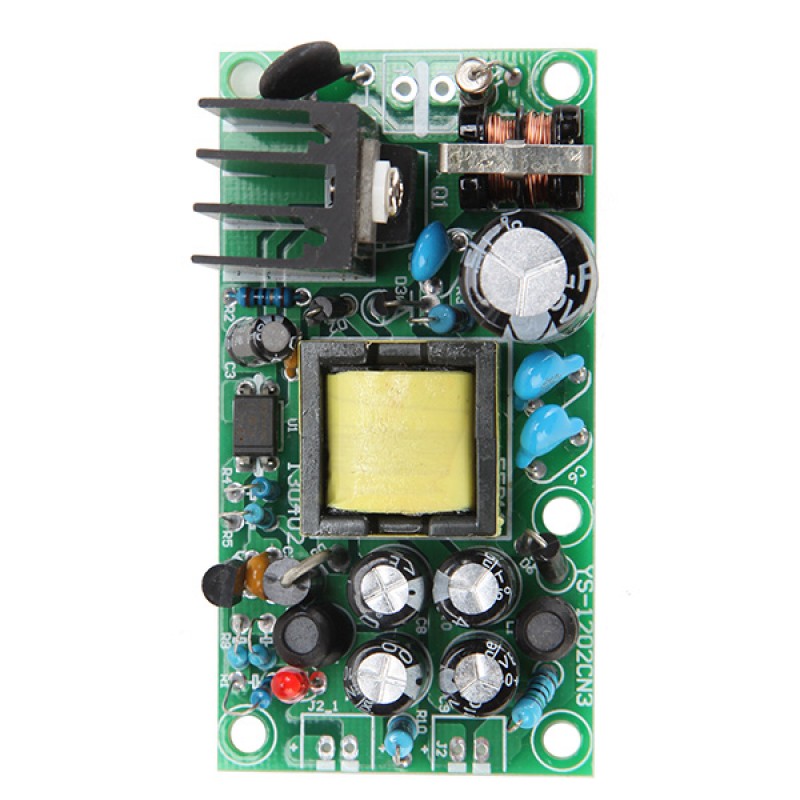

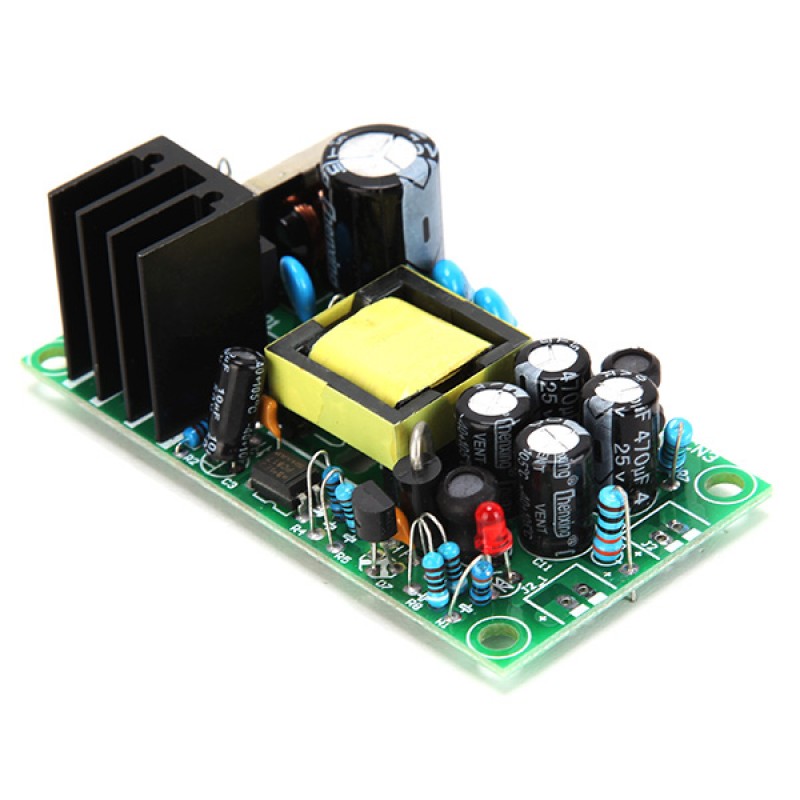

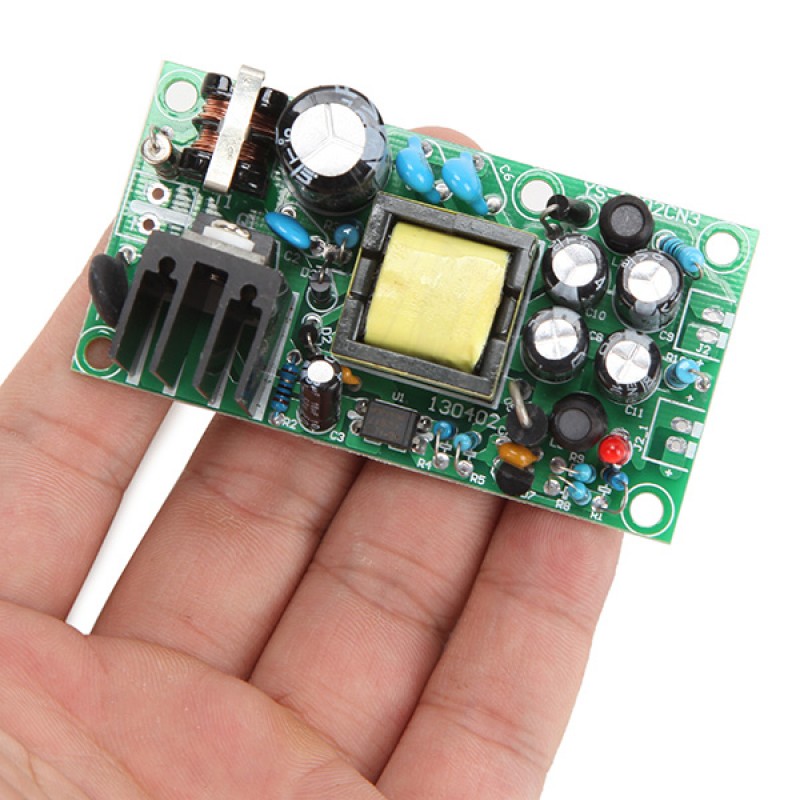

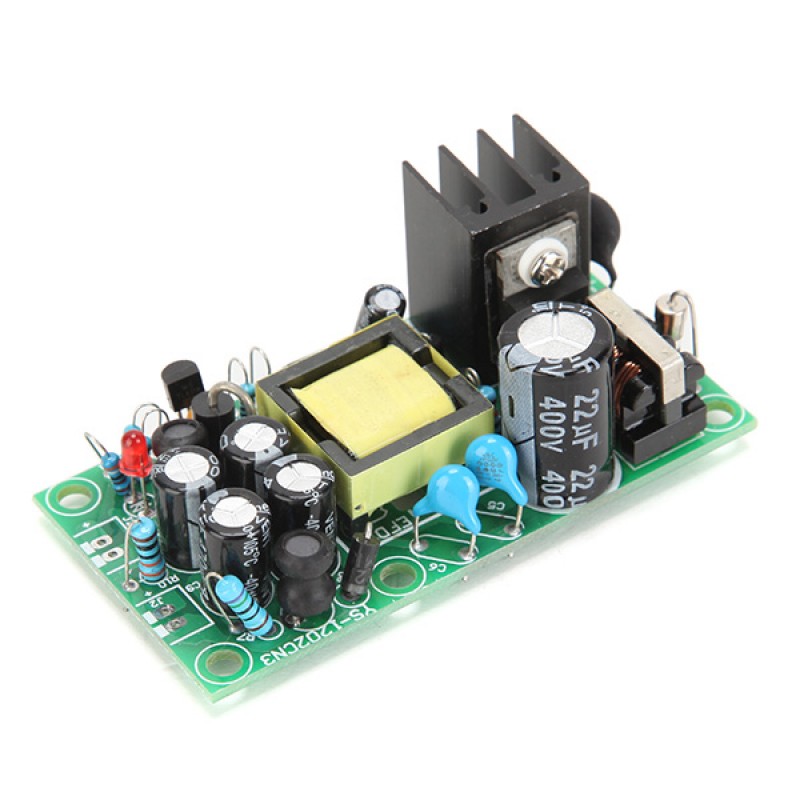

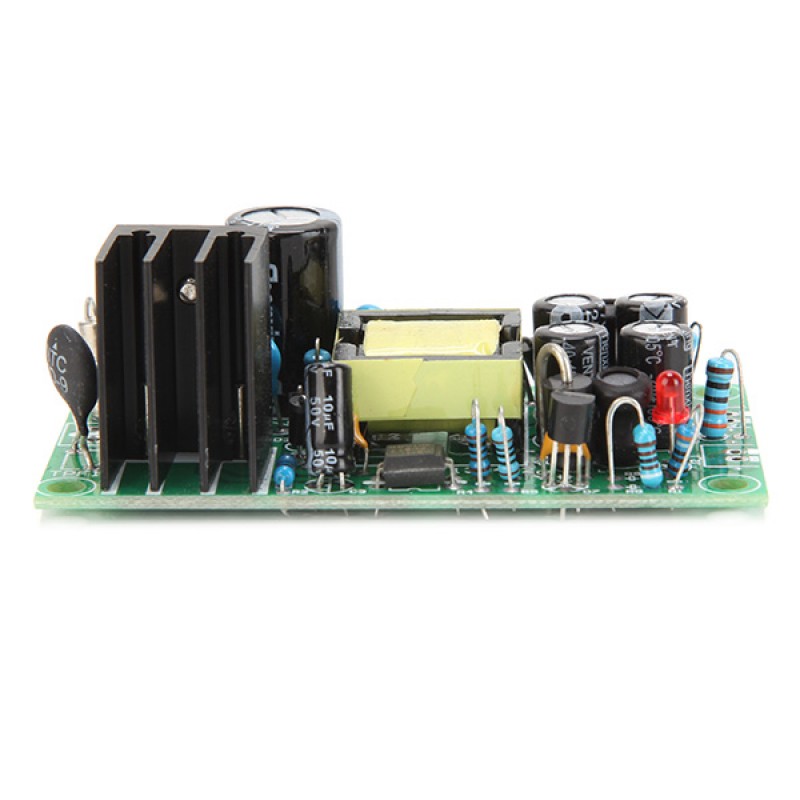

12V 5V Fully Isolated Switching Power Supply AC-DC Module 220V to 12V
Product Code: trd022
Availability: In Stock
Availability: In Stock
$8.99
Ex Tax: $8.99
Ex Tax: $8.99
Product Description
12V 5V Fully Isolated Switching Power Supply AC-DC Module 220V to 12V
Feature:
The power supply is fully isolated industrial grade built-in power module with temperature protection, overcurrent protection and short circuit full protection, AC85 ~ 265V wide voltage input, high and low voltage isolation, DC12V1A 5V1A dual isolated output voltage, 431 regulated, output with EMI filter circuit, with light, with mounting holes, cost-effective.
Working temperature: -20 to 60 Relative humidity: 40 RH – 90 RH Input voltage range: 85V – 265V (typical: 110/220) (under full load conditions) Input Current: 0.027 (AC110V) 0.0136 (AC220V) (under full load conditions) Input surge current: 20A (under full load conditions) Size: 7.5 x 4.0 x 4.0 (cm)
Output regulation characteristic:
| Output voltage | Minimum current | Maximum current | Peak current | Output voltage range | Ripple |
| +12V | 0A | 1A | 1.2A | 11.80~12.5V | 150mV |
| +5V | 0A | 1A | 1.2A | 4.90~5.1V | 80mV |
Other output characteristics:
| Item | Unit | Min | Typical values | Max | Test Conditions |
| Output Power | W | 0 | 17 | 18.5 | DC output power |
| Output efficiency | 84 | Rated load | |||
| Boot shutdown overshoot | 10 | ||||
| The output rise time | mS | 100 |
Protection:
| Item | Unit | Yes/No | Min | Typical values | Max | Recovery characteristics |
| Output voltage | V | 13 | 13.5 | Lock, restart after recovery | ||
| 5 | 5.4 | Lock, restart after recovery | ||||
| Output Power Protection | Yes | 17 | 19 | Lock, restart after recovery | ||
| Short circuit protection | Yes | Lock, restart after recovery | ||||
| Temperature Protection | Yes | 90°C | 105°C | Lock, restart after recovery | ||
| Overcurrent protection | Yes | Lock, restart after recovery |
Package included:
1 x Fully Isolated Switching Power Supply
