DC 6V-12V To 500Kv High Voltage Generator Inverter Boost Power Module
Product Code: trd020
Availability: In Stock
Availability: In Stock
$10.99
Ex Tax: $10.99
Ex Tax: $10.99
Product Description

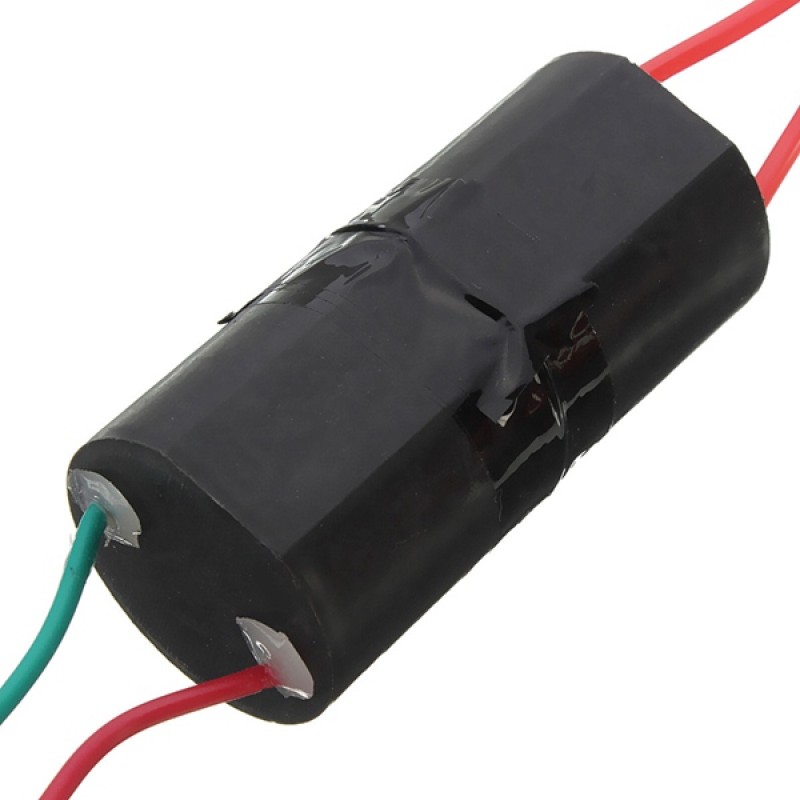

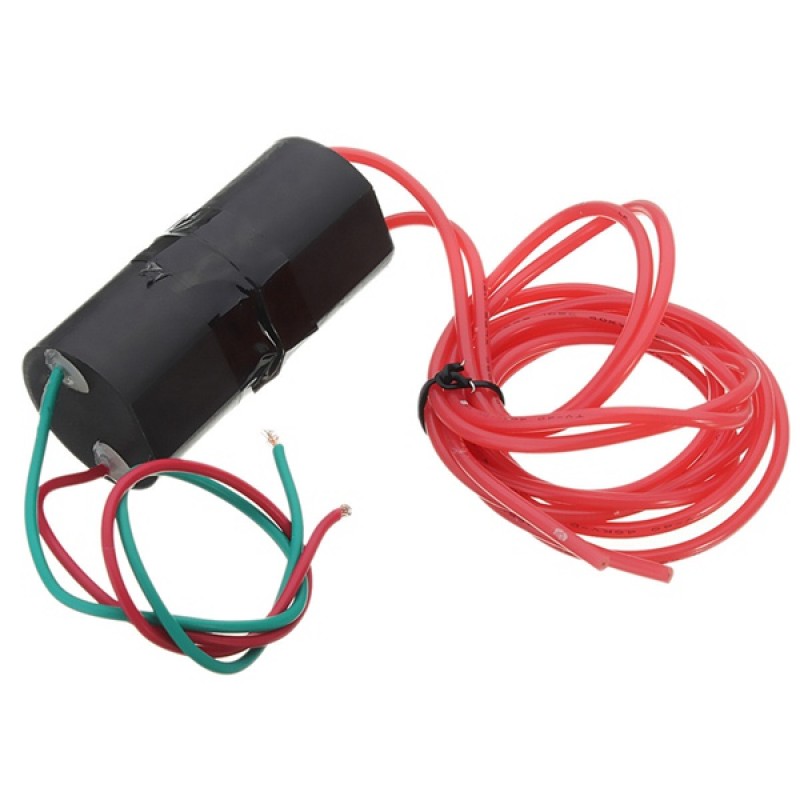

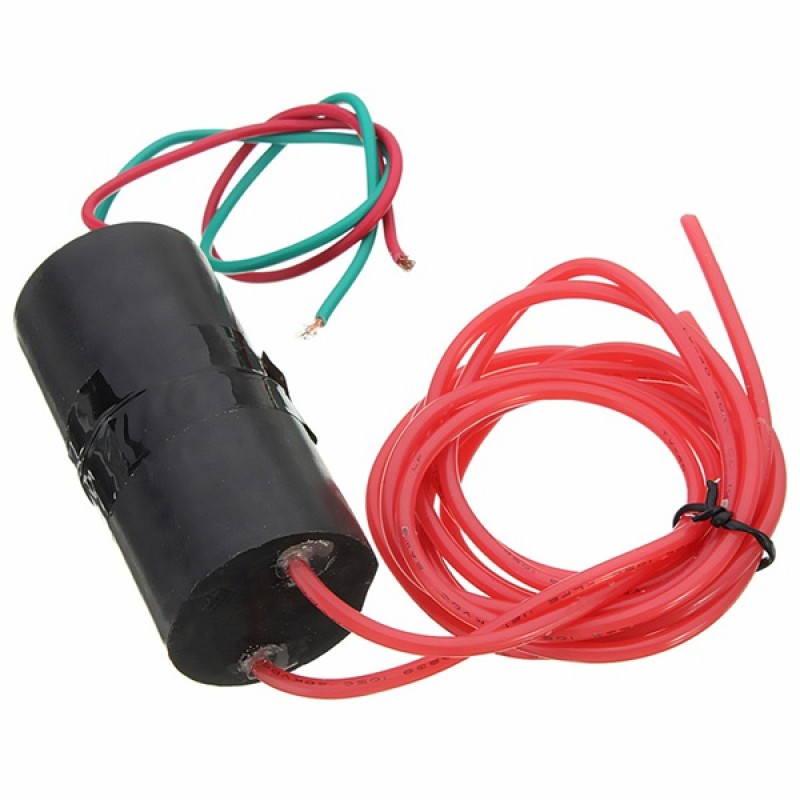

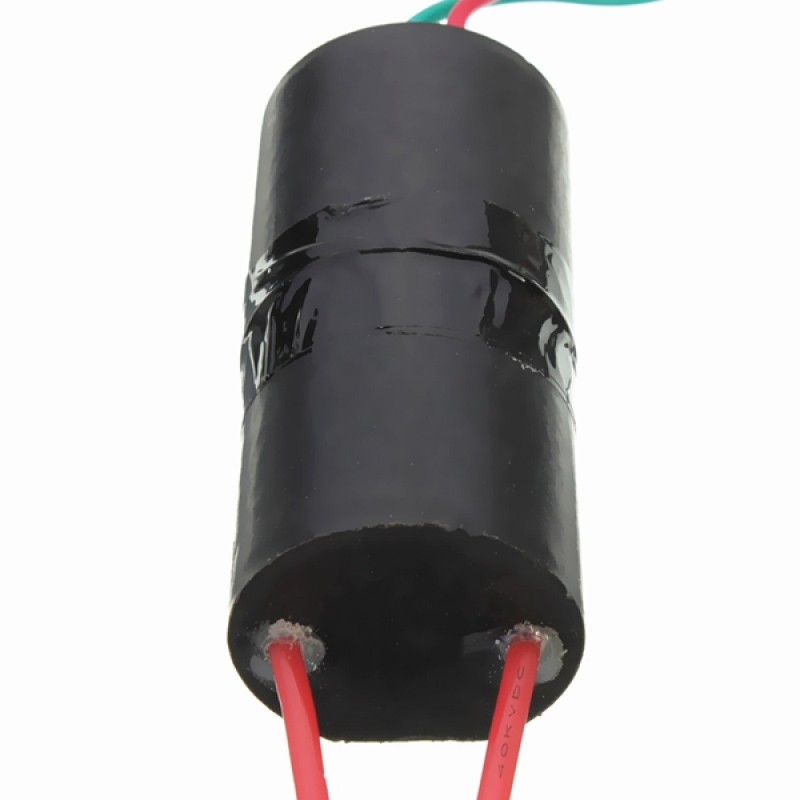

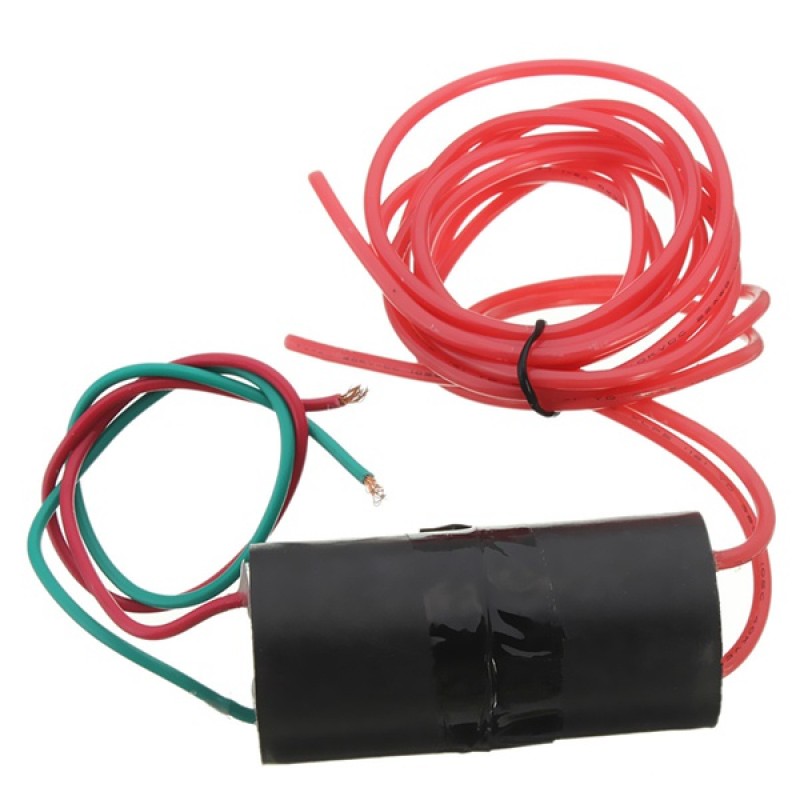

DC 6V-12V To 500Kv High Voltage Generator Inverter Boost Power Module
Specification:
Peripheral circuit is simple (just plug in switches, batteries can be) the discharge intensity violent.
Module Model: MCY-12-1

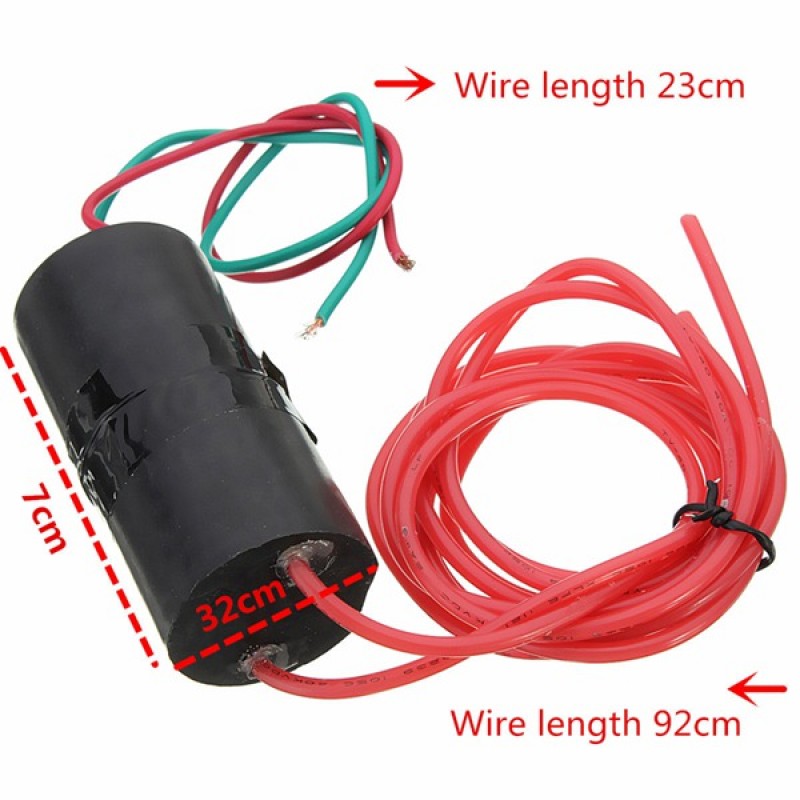

Physical volume: Length 70X 32mm diameter
Input voltage: 6V-12V
Input Current: 0.5A-1A

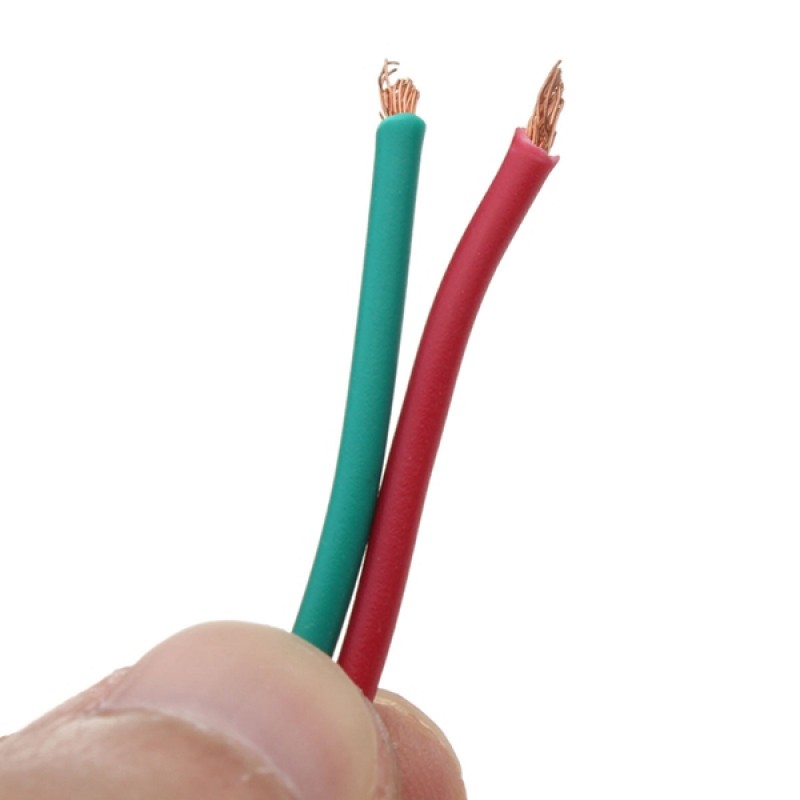

Input line length: 23 cm
High voltage type: DC type pulse
Output voltage: about 500KV (please pay attention to safety when used !!!!!!!!!!)
Output Current: 0.5A-1A

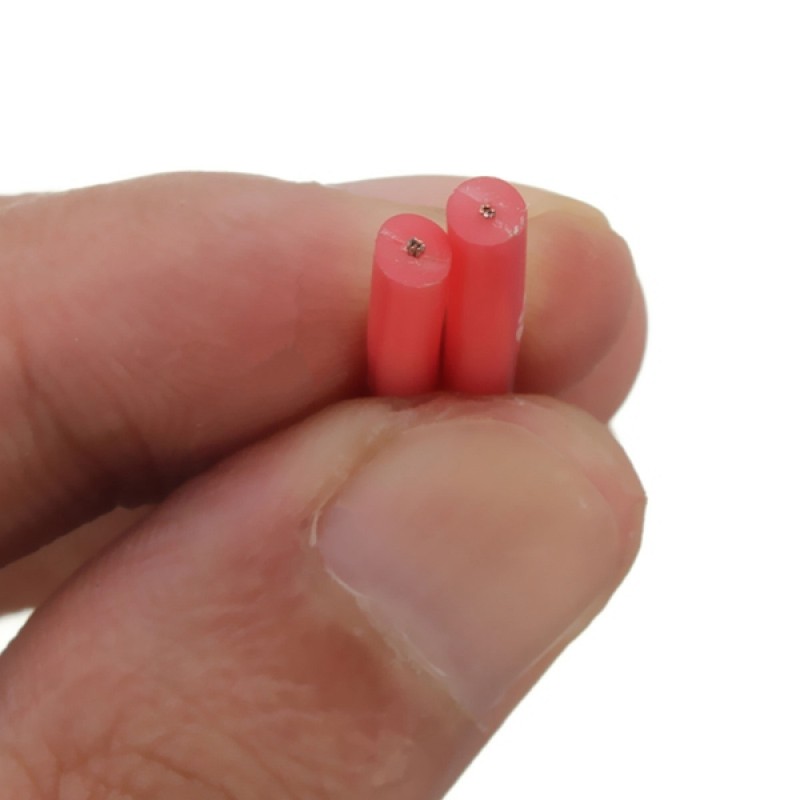

Output line length: about 92 cm
High voltage bipolar discharge distance: 2 cm -5 cm
Feature:
This module is a science of small production with high voltage inverter transformer / booster finished module
After the input terminal DC6V-12V voltage can get tens of thousands of volts of direct current high voltage at the output,It can be used for high school science experiment, electronic equipment, negative ion generator, high voltage source when using scientific small production,Module uses the Tesla coil principle is made,
the output high voltage pulse current, small size, high efficiency
Precautions for use:
1, to avoid the use of electricity at high voltage load, must adjust the proper distance
between the front end of the high-voltage power-
2. to test the arc distance from short to long experiment, when power is strictly prohibited exceed
the maximum arcing distance, energy can not be released due to high pressure, easy to damage the module.
3, power module, the internal should not heat, so we can not work long hours.
4, determine whether the battery capacity can drive maximum power output of the battery
voltage measurement approach is arcing time. If 6V or so you can output the maximum power.
5, two small-capacity lithium series is 7.2V, measured in arc-state voltage has dropped to about 4V,
the capacity of the smaller voltage pull lower. It is proposed to use lithium 2000MA above,
the best conditions with more battery 4000MA.
Package included:
1 x DC 12V DC pulse high-voltage module
